33/11kV Power transformer OLTC NLTC

Power transformer

Product details:

  • Outdoor oil immersed type distribution transformer
  • Three phase four wire
  • Rated primary voltage: 33kV, 35kV, 36kV, or 20kV, 22kV, 24kV
  • Rated secondary voltage: 3kV, 6kV, 10kV, 11kV
  • Capacity: 2MVA-31.5MVA
  • OLTC and NLTC
  • Standard: IEC, ANSI, GB
  • Type name: S9
33/11kV Power transformer OLTC NLTC 1  33/11kV Power transformer OLTC NLTC 233/11kV Power transformer OLTC NLTC 333/11kV Power transformer OLTC NLTC 433/11kV Power transformer OLTC NLTC 5

 General

This Outdoor oil immersed type power transformer  use for medium voltage to medium voltage power system.
It have been used in substation.
The transformer high quality transformer oil, high quality CRGO core, primary and secondary use pure electrolytic copper, both winding and core have shielding processing.

It can use Germany MR break, to be on load tap changer, or to make non load tap changer.

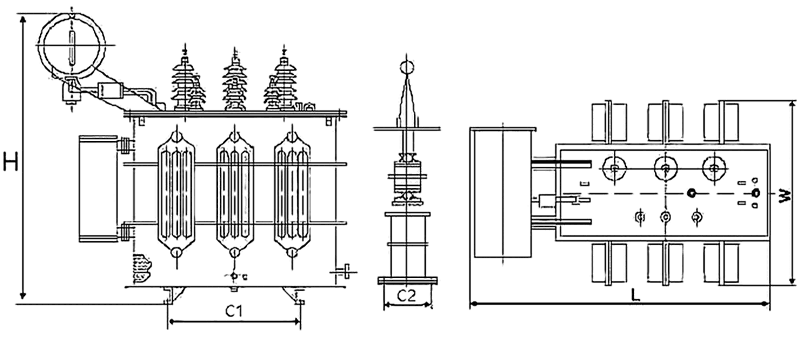

Main Technical data

Rated
capacity  (KVA)
Voltage
combination
Connection symbol Loss(kW) No-Load  current
(%)
Impedance voltage (%) Weight(kg)
H.V (kV) High
voltage tapping range
L.V
(kV)
No-Load load oil  weight overall  weight
2000
33
35
36
38.5
±3×2.5
3
6
10
10.5
11
Yd11
YNd11
2.88 20.25 0.8 6.5 1560 2775
2500 3.4 21.73 0.8 1750 3300
3150 4.04 26.01 0.72 7 1970 3770
4000 4.84 30.69 0.72 2260 4520
5000 5.8 36 0.68 2475 5480
6300 7.04 38.7 0.68 7.5 2620 6810
8000 9.84 42.75 0.6 3330 8066
10000 11.6 50.58 0.6 3750 9705
12500 13.68 59.85 0.56 8 4215 10960

Standards

All UNISUN transformers are in conformity with IEC standards, Transformers in conformity with specific country standards can also be supplied. (IEEE, GB)
