Product details:
|
|

|
||
General
This siinglge phase voltage regulate used in 3.3kV, 6kV, 10kV, 11kV, 12.5kV and 13.8kV power system, for automatic voltage stable.
It can install on each phase, three phase install three different voltage regulator, then working together to make three phase stable. Special for long distance transmission and distribution line voltage drop problem.
It use high quality control unit. have MODBUS, DNP3 communicate protocol. can connect to smart grid system.
All copper winding have high quality transformer oil, guarantee long service life.

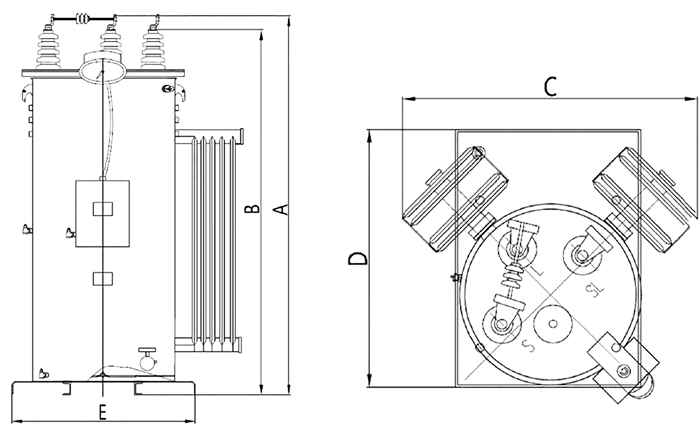

Main Technical data
| ltage (kV) |
Load (Amperes) |
kVA |
Oil （L） |
Untanking WGT (LBS) |
Total WGT (LBS) |
| 14.4 | 50 | 72 | 265 | 860 | 1680 |
| 150kV | 100 | 144 | 350 | 1280 | 2250 |
| BIL | 200 | 288 | 555 | 2000 | 4000 |
| 300 | 432 | 800 | 2650 | 5000 | |
| 400 | 576 | 1150 | 3165 | 6400 | |
| 19.92 | 50 | 100 | 400 | 1000 | 2100 |
| 200kV | 100 | 200 | 580 | 1800 | 3300 |
| BIL | 167 | 333 | 680 | 2200 | 4120 |
| 200 | 400 | 800 | 2700 | 5000 | |
| 335 | 667 | 1300 | 3500 | 6800 |
| Voltage | Load Current (Amperes) | kVA |
Oil （L） |
Untanking WGT (LBS) |
Total WGT (LBS) |
| (kV) | |||||
| 7.62 | 50 | 38 | 220 | 800 | 1450 |
| 95kV | 100 | 76 | 225 | 820 | 1650 |
| BIL | 150 | 114 | 250 | 850 | 1750 |
| 219 | 167 | 305 | 980 | 1890 | |
| 328 | 250 | 511 | 1580 | 3250 | |
| 438 | 333 | 731 | 1988 | 3887 | |
| 546 | 416 | 855 | 2222 | 4730 | |
| 13.8 | 50 | 69 | 220 | 860 | 1450 |
| 95kV | 100 | 138 | 275 | 950 | 1800 |
| BIL | 150 | 207 | 360 | 1450 | 2665 |
| 200 | 276 | 680 | 2200 | 4320 | |
| 300 | 414 | 1100 | 2350 | 5700 | |
| 400 | 552 | 1500 | 2900 | 7500 |
Standards
All UNISUN Electric instrument transformers are in conformity with IEC standards, and recommendations IEC 61869. Transformers in conformity with specific country standards can also be supplied. (IEEE C57.13, NBR6855).
