Air Insulator RMU

Air-Insulator-RMU

Product details:

  • Air insulation ring main unit
  • Indoor medium voltage distribution switchgear
  • Rated voltage: 3.3kV, 6kV, 10kV, 11kV, 12.5kV, 13.8kV
  • Current up to: 4000A
  • Floor standing
  • Standard: IEC, ANSI, GB

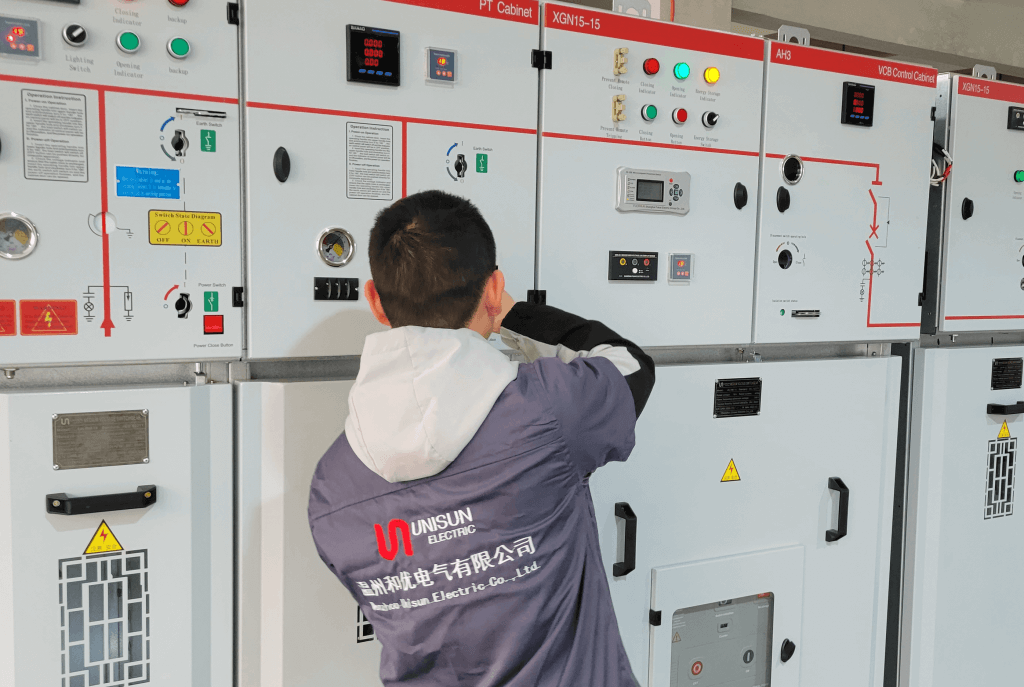

  • UN-XGN15

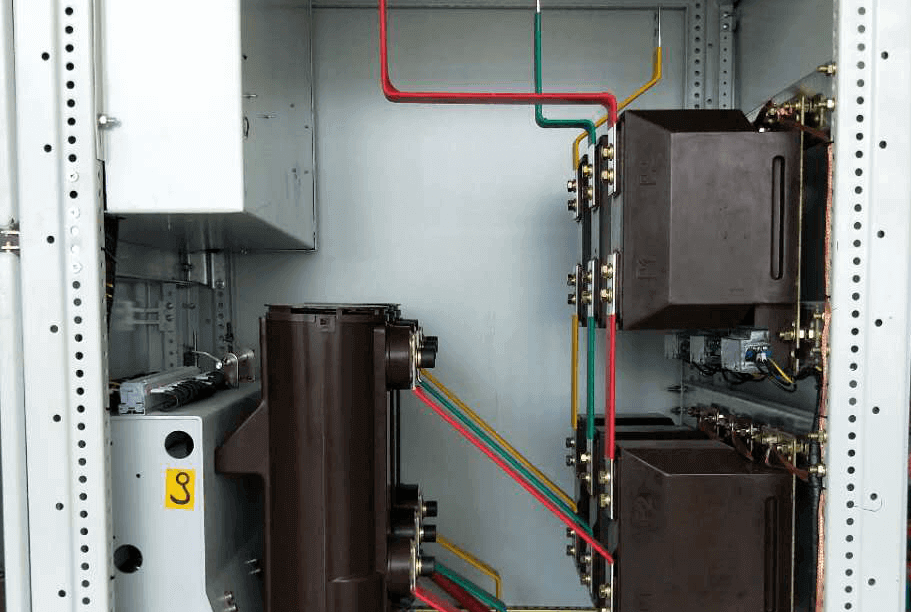

General

This medium voltage switchgear is used in 3.3kV, 6kV, 10kV, 11kV, 12.5kV and13.8kV power system, as control distribution unit.
It can be floor standing or wall mounted. by using withdrawable ACB up to 4000A. by use SF6 LBS, combind cabinets as RMU.
Compact structure with degree of protection cabinets, up to IP 4X.
High quality aluminium zinc-coated sheet, make cabinet strong and lighter.

Standards
All UNISUN switchgear are in conformity with IEC standards, and recommendations IEC 60439. switchgear in conformity with specific country standards can also be supplied. (IEEE,GB)
